0/1-10V AC Mains Input CC Dimmable LED Drivers

Mains Input 0-10v 10W and 12W CC

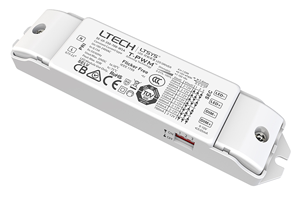

The SE-10 and SE12 series are constant current 0-10v / 1-10v  dimmer drivers. The driver has multiple input protocols and automatic recognition of 0-10V, 1-10V input signal with soft on and fade in function. Drivers feature short circuit, over-heat, over load and over voltage protection.

Mains Input 0-10v 10W and 12W CC

Features include:

• AC mains input 200-240VAC

• Output 350mA to 700mA

• Dimming interface 0-10V 1-10V 10V PWM

• 0-100% flicker free dimming

• Output power 10W or 12W

• Dimming range 0 ~ 100%

• Dimensions 135x30x20mm (LxWxH)


Mains Input 0-10v 20W CC

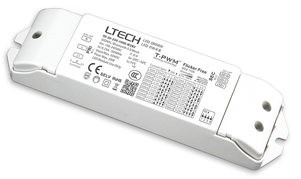

The SE-20-250-1000-W2A2 is a constant current 0-10v / 1-10v  dimmer drivers. The driver has multiple input protocols and automatic recognition of 0-10V, 1-10V input signal with soft on and fade in function. Drivers feature short circuit, over-heat, over load and over voltage protection.

Mains Input 0-10v 20W CC

Features include:

• 100-240VAC Mains input

• Output 250mA to 1000mA

• Power output 20W
• Flicker free Dimming range 0 ~ 100%

• Mains "Push Dimming"

• Dimensions 167×41×32mm(L×W×H)


Mains Input 0-10v 36W CC

The AD-36-200-1200-U1P1 is a 36W constant current 0-10v / 1-10v  dimmer driver. The driver has multiple input protocols and automatic recognition of 0-10V, 1-10V input signal with soft on and fade in function and features short circuit, over-heat, over load and over voltage protection.

Mains Input 0-10v 36W CC

Features include:

• 100-277VAC Mains input

• Output 200mA to 1200mA

• 0-10V (1-10V/10VPWM/RX)

• Output power 36W

• Flicker free Dimming range 0 ~ 100%

• Mains "Push Dimming"

• Dimensions 175x44x30mm (LxWxH)
