LTECH Drivers

We offer an extensive range of DMX LED controllers & drivers with constant current or constant voltage outputs designed for advanced control of LED lighting products.

The range includes:

Standard Wall plate mount
Touch plate or rotary control
DIN Rail mount
DMX Signal Amplifiers
DMX Decoders
DMX Transceivers

DMX-CC Mains Selector Guide

LT-810-CC 1-Channel DMX To PWM Decoder

The LT-810-CC is a single channel constant voltage DMX Decoder designed to convert universal DMX512 digital signal to CC PWM signal to drive LEDs.

Input voltage range 12v~48vdc
3-in-1 output current selection 350/700/1050mA
DMX512 input
Dimming range 0-100%
Dimensions 175x44x30mm

LT-810-CC Datasheet

LT-830-CC 3-Channel DMX To PWM Decoder

The LT-830-CC is a 3 channel constant voltage DMX decoder driver designed to convert universal DMX512 digital signal to CC PWM signal to drive LEDs.

12v~48vdc
3-in-1 output current selection 350/700/1050mA
DMX512 input XLR3 sockets & screw terminals
Dimming range 0-100%
Dimensions L125×W52×H40mm

LT-830-350 Datasheet LT-830-700 Datasheet

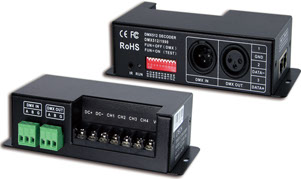

LT-840-CC 4-Channel DMX To PWM Decoder

The LT-840-CC is a 4 channel constant voltage DMX decoder driver designed to convert universal DMX512 digital signal to CC PWM signal to drive LEDs.

12v~48vdc
3-in-1 output current selection 350/700/1050mA
DMX512 input XLR3 sockets & screw terminals
Dimming range 0-100%
Dimensions L125×W52×H40mm

LT-840-350 Datasheet LT-840-700 Datasheet

LT-880-CC 16-Channel DMX To PWM Decoder

The LT-880-CC is a 16 channel constant voltage DMX decoder driver designed to convert universal DMX512 digital signal to CC PWM signal to drive LEDs.

12v~48vdc
3-in-1 output current selection 350/700/1050mA
DMX512 input XLR3 sockets & screw terminals
Dimming range 0-100%
Dimensions L125×W52×H40mm

LT-880-CC Datasheet

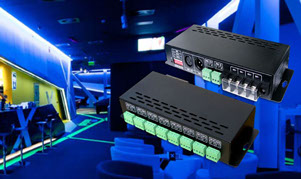

DMX-PWM CC LED Decoders
