Rotary Control Panels

E Series Rotary

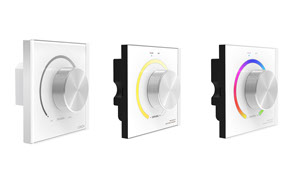

We offer a range of wall mounted, rotary panel LED controllers designed to fit into a standard single gang wall plate.

Options include:

Choice of input Mains or low voltage DC
Hard wired or wireless RF2.4GHz
CT control
3 and 4 channel RGB/RGBW
DMX
1/10v Dimming
Triac Mains dimming

We support rotary LED control panels with a range of LED drivers in constant voltage and constant current outputs. Also see our range of Touch Panel LED Controllers

EX61 Wireless Rotary DMX Dimmer

The EX61 is a wireless rotary panel LED controller designed to drive LED strips and clusters via RF or DMX signal. For convenience the touch panel mounts into a standard single gang wall plate.

100 ~ 240vac mains supply
Output wireless RF2.4Ghz + DMX512
30 M transmission distance
Dimming control
Use RF with R4-5A and R4-CC receiver drivers
Use with DMX512 decoder driver

EX61-DIM Datasheet

E610 Rotary 1-10V Dimmer

The E610 is a rotary panel LED dimmer designed to drive LED strips and clusters via 1-10v dimmer drivers. The dimmer has built in power switch and is easily mounted into a standard single gang wall plate.

100 ~ 240vac mains supply
Switching current 5A max
Output 1-10v 50mA control current
Use with 1-10v dimmable drivers

E610-1-10V Datasheet
