LED Power Repeaters

LT3010-12A CV PWM

The LT3030-6A is a single channel power amplifier suitable for use with single colour controllers to expand power output. Input is by PWM control and theoretically unlimited power amplifiers can be connected for further expansion.

Input signal PWM
Input voltage 12V~24VDC
Max load current 12A ×1CH Max 12A
Max output power 144W/288W(5V/12V/24V)
Dimensions L178×W44×H30(mm)

LT-3010-12A Datasheet

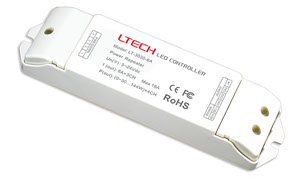

LT3030-6A CV PWM

The LT3030-6A is a 3-channel power amplifier suitable for use with single colour & RGB controllers to expand power output. Input is by PWM control and theoretically unlimited power amplifiers can be connected for further expansion.

Input signal PWM
Input voltage 5V~24vdc
Max load current 6A ×3CH Max 18A
Max output power 100W/240W/480W(5V/12V/24V)
Dimensions L175×W44×H30(mm)

LT-3030-6A Datasheet

LT3040-5A CV PWM

The LT3040-5A is a 4-channel power amplifier suitable for use with single colour & RGB/W controllers to expand power output. Input is by PWM control and theoretically unlimited power amplifiers can be connected for further expansion.

Input signal PWM
Input voltage 5V~24vdc
Max load current 5A ×4CH Max 20A
Max output power 100W/240W/480W(5V/12V/24V)
Dimensions L175×W44×H30(mm)

LT-3040-5A Datasheet

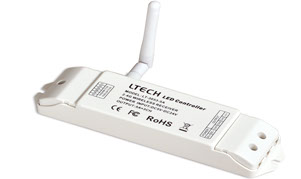

LT3053-5A Wireless Receiver

The LT3053-5A is a 3-channel wireless receiver suitable for use with single colour & RGB/W wireless transmitter LT3050 to expand power output. Input is by PWM control and multiple receivers can be connected for further expansion.

Output signal PWM
Input voltage 5V~24vdc
Max load current 5A ×3CH Max 18A
Max output power 75W/180W/360W(5V/12V/24V)
Dimensions L175×W44×H30mm

LT-3053-5A Datasheet
