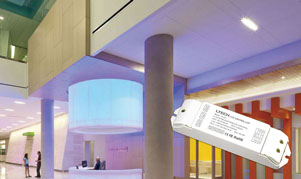

To support our range of RF controllers we offer a range of RF receiver/drivers designed for the control & drive of LED fittings.
Types include:
These units are designed to be used in conjunction with constant voltage 5v ~ 24vdc LED drivers.

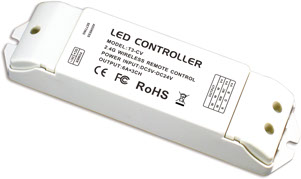

T3-CV & T3-CC 3-Channel RF LED Receiver Drivers
The T3-CV is a 3 channel constant voltage RF receiver/driver designed to be controlled via RF either in synchronisation with the WiFi102 or 103 controller or via stand-alone hand held T3 remote controller. Operation is from 5v to 24vdc 5A/channel.
The T3-CC is a 3 channel constant current RF receiver/driver designed to be controlled via RF in synchronisation with the WiFi102 or 103 controller or via stand-alone hand held T3 remote. Operation is from 12v to 48vdc and units are current selectable 350/700/1050 per channel.

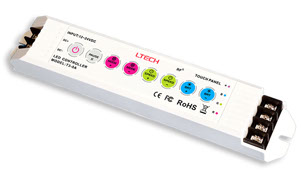

T3-5A 3-Channel RF LED Controller Receiver Driver
The T3-5A is a 3 channel constant voltage RF controller receiver/driver designed to be controlled via RF via the hand held T3 remote controller.

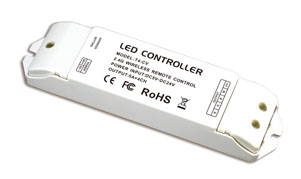

T4-CV & T4-CC 4-Channel RF LED Receiver Drivers
The T4-CV is a 4 channel constant voltage RF receiver/driver designed to be controlled via RF in synchronisation with the hand held T4 hand-held remote controller. Operation is from 5v to 24vdc 5A/channel.
The T4-CC is a 4 channel constant current RF receiver/driver designed to be controlled via RF in synchronisation with the hand-held T4 remote. Operation is from 12v to 48vdc and units are current selectable 350/700/1050 per channel.

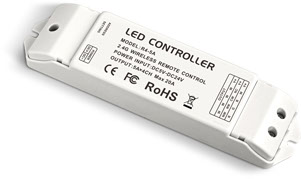

R4-CV & R4-CC 4-Channel RF LED Receiver Drivers
The R4-5A is a 4 channel constant voltage RF receiver/driver designed to be controlled via RF from WiFi-104 LED controllers and V series hand held remote controller. Operation is from 5v to 24vdc 5A/channel.
The R4-CC is a 4 channel constant current RF receiver/driver designed to be controlled via RF from WiFi-104 LED controllers and V series hand held remote controller. The driver voltage range is 12~48vdc and is constant current selectable 350/700/1050 per channel.
F4-CV & F4-CC 4-Channel RF LED Receiver Drivers
The F4-5A is a 4 channel constant voltage RF receiver/driver designed to be controlled via RF from WiFi-106 LED controllers and F series hand held remote controller. Operation is from 5v to 24vdc 5A/channel.
The F4-CC is a 4 channel constant current RF receiver/driver designed to be controlled via RF from WiFi-106 LED controllers and F series hand held remote controller. The driver voltage range is 12~48vdc and is constant current selectable 350/700/1050 per channel.

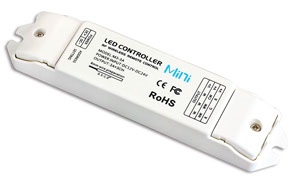

M3-3A & M3-5A 3-Channel RF LED Receiver Drivers
The M3-3A and M3-5A are 3 channel constant voltage RF receiver/drivers designed for LED strip illumination controlled via RF from the M series Mini-controllers.
