DMX-PWM Constant Voltage LED Drivers

The LT-DMX-PWM-CV series are AC mains input drivers designed to convert DMX512 digital signal to constant voltage output PWM signal to drive LEDs. The range features a choice of single and multichannel output and flicker free dimming, drivers conform to International safety and EMC standards.

The range features:

AC mains input 240VAC
Output 12-24VDC
Control by DMX/RDM and push
0-100% flicker free dimming IEEE 1789
Constant voltage output
Output power 36W to 150W

DMX-CV Mains Selector Guide

LM-75-12 24G1M2 75W to 150W DMX To PWM Decoder

The LM75,100 and 150 G1M2 series are AC mains input single channel constant voltage DMX Drivers designed to convert universal DMX512 digital signal to CV PWM signal to drive LEDs.

Features include:

AC mains input voltage 240vAC
Output voltage12v and 24vdc Constant voltage
Output power 36W to 150W
Single channel Constant Voltage
Control by DMX/RDM and push
0-100% flicker-free (IEEE 1789 standard)

LM-75-12_24-G1M2 LM-150-12_24-G1M2

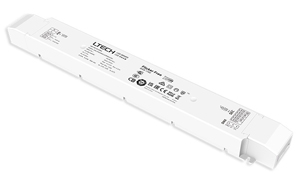

LM-150-24-G4K3 150W DMX To PWM Decoder

The PSU-LM-150-24-G4K3 is an AC mains input 4-channel constant voltage DMX Drivers designed to convert universal DMX512 digital signal to CV PWM signal to drive multi-colour LEDs.

Features include:

AC mains input voltage 240vAC
Output voltage 24vdc Constant voltage
Output power 150W
4-Channel RGBW Constant Voltage
Control by DMX/RDM and push
0-100% flicker-free (IEEE 1789 standard)

PSU-LM-150-24-G4K3

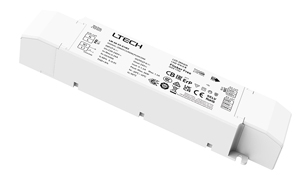

LT-DMX-36-12_24-G1M2 DMX To PWM Decoder

The LT-DMX-36-12_24-G1M2 series are AC mains input single channel constant voltage DMX drivers designed to convert universal DMX512 digital signal to CV PWM signal to drive LEDs.

Features include:

Output voltage12v and 24vdc Constant voltage
Single channel 1.5A and 3.0A CV output
RDM/DMX512 input
Dimming range 0-100%
Dimensions L210xW43xH30mm

LM-36-12_24-G1M2
