Mains Dimmable CV

To support our extensive range of LED products we offer a comprehensive range of mains dimmable constant voltage LED drivers designed specifically for LED applications. The range facilitates flexible wire-in connection via covered screw terminals.

Options include:

  • Leading or trailing edge triac dimmable
  • Momentary "push" dimmable

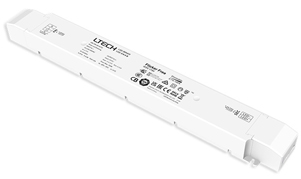

TD-150 Series 150W CV Dimmable Driver

The TD-150-12-E1M1 and TD-150-24-E1M1 150W CV mains dimmable drivers can be controlled via most leading edge/trailing edge triac dimmer modules. Mains input 100~240vac.

  • Mains dimming triac leading/trailing edge
  • CV Output 12vdc 12.5A and 24vdc 6.25A
  • Dimming range 0~100%
  • Operating Temp -30°~60°C
  • Dimensions 270x55x36mm (LxWxH)

TD75 Series 75W CV Dimmable Driver

The TD-75-12-E1M1 and TD-75-24-E1M1 75W CV mains dimmable drivers can be controlled via most leading edge/trailing edge triac dimmer modules. Mains input 100~240vac.

  • Mains dimming triac leading/trailing edge
  • CV Output12vdc 6.25A and 24vdc 3.1A
  • Dimming range 0~100%
  • Operating Temp -30°~60°C
  • Dimensions 204x62x34mm (LxWxH)

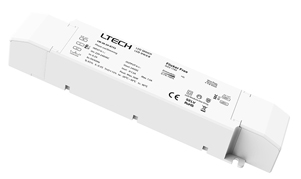

LM-75 Series 75W CV Dimmable Driver

The LM-75-12-G1T2 and LM-75-24-G1T2 75W CV mains dimmable drivers can be controlled via most leading edge/trailing edge triac dimmer modules. Drivers feature protection from short circuit, over-heat, over load, over voltage with auto recovery.

  • AC mains input 240VAC
  • Output 12VDC or 24VDC
  • Output power 75W
  • 0-100% flicker free dimming
  • Mains "Push" dimming
  • 293x43x30mm (LxWxH)

TD50-500-1750 50W Adjustable CC Dim Driver

The TD-50-12-E1D1 36W CV DIN rail mains dimmable drivers can be controlled via most leading edge/trailing edge triac dimmer modules. Drivers feature protection from short circuit, over-heat, over load, over voltage with auto recovery.

  • AC mains input 240VAC
  • Output 12VDC
  • Output power 50W
  • Triac dimming leading/trailing edge
  • 0-100% flicker free dimming
  • Mains push dimming
  • 107x89x58mm (LxWxH) DIN rail mount
