LED Mini-Controllers

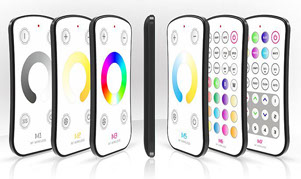

LT-M1 To M8 RF Transmitters

The M series RF transmitters offer a choice 8 types all of which are  compatible with the LT-M3-3A driver to provide:

  • Dimming
  • Colour temperature (NW/WW CT control)
  • Colour temperature (CW/NW/WW CCT control)
  • RGB colour mix
  • RGBW colour mix

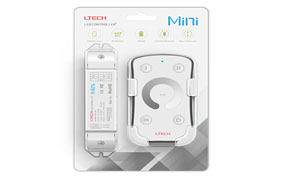

LT-M1+M3-3A Dimmer Mini Controller

The LT-M1+M3-3A is a 3-channel Dimming LED controller which utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles. A choice of 6 RF remote transmitters are available for different functions.

  • 3-channel CV drive, 3A/channel
  • Low voltage operation 12v ~ 24vdc
  • 4096 grey scale for advanced control
  • Transmission distance 40~50 metres
  • Receiver driver compatible with 6 different transmitters

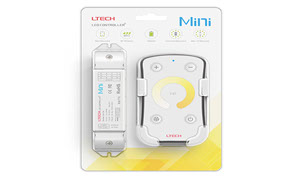

LT-M2+M3-3A CT Mini Controller

The LT-M2+M3-3A is a 2-channel Colour Temperature LED controller which utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles. White LED Colour temperature may be adjusted from the hand-held remote.

  • 3-channel CV drive, 3A/channel
  • Low voltage operation 12v ~ 24vdc
  • 4096 grey scale for advanced control
  • Transmission distance 40~50 metres
  • Receiver driver compatible with 6 different transmitters

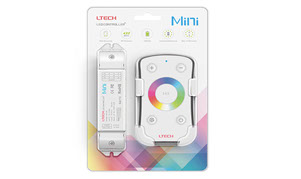

LT-M3+M3-3A RGB Mini Controller

The LT-M3+M3-3A is a 3-channel RGB LED controller which utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles.

  • 3-channel CV drive, 3A/channel
  • Low voltage operation 12v ~ 24vdc
  • 4096 grey scale for advanced control
  • Transmission distance 40~50 metres
  • Receiver driver compatible with 6 different transmitters

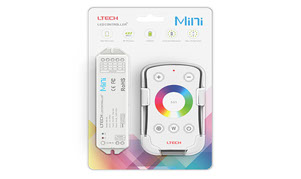

LT-M4+M4-5A RGBW Mini Controller

The LT-M4+M4-5A is a 4-channel RGBW LED controller which utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles.

  • 4-channel CV drive, 3A/channel
  • Low voltage operation 5v ~ 24vdc
  • 4096 grey scale for advanced control
  • Transmission distance 40~50 metres
  • Receiver driver compatible with 6 different transmitters

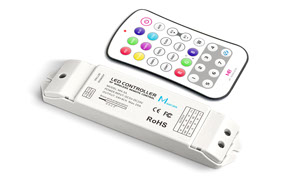

LT-M8+M4-5A RGBW Mini Controller

The LT-M8+M4-5A is a 4-channel RGBW LED controller which utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles.

  • 4-channel CV drive, 5A/channel
  • Low voltage operation 5v ~ 24vdc
  • 4096 grey scale for advanced control
  • Transmission distance 40~50 metres
  • Receiver driver compatible with 6 different transmitters

LT-SPI16+M16 SPI Mini Controller

The LT-SPI16-M16 is a multi-channel LED transmitter & receiver designed to control each LED pixel in full colour RGB strips & fixtures. The system utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances.

  • 3-channel SPI control 10A
  • Low voltage operation 5v ~ 24vdc
  • Supports a range of IC types
  • Remote distance 40~50 metres
