Triac Mains Dimmable Constant Current LED Drivers

To support our extensive range of LED products we offer a comprehensive range of mains dimmable constant current LED drivers designed specifically for LED applications. The range facilitates flexible wire-in connection via covered screw terminals.

Options include:

Leading or trailing edge triac dimmable
Momentary "push" dimmable
High stability at low currents preventing flicker
High compatibility with dimmer module brands

LT-TD Series CC Selector Guide

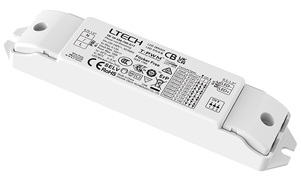

TD-9W and 10W Adjustable CC Dim Driver

The TD-9 and TD-10 series mains dimmable drivers can be controlled via most leading edge/trailing edge triac dimmer modules. The driver features adjustable constant current output settings from 100mA to 700mA.

Mains input triac dimmable 220~240VAC
Output voltage 9 ~ 42vdc
Constant current output adjustable from 100 ~ 700mA
Dimming range 0~100%

TD-9_TD-10-350-700-G1T TD-20-200-700-E1P1

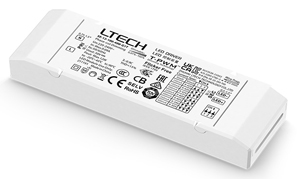

SE-12 and SE-15 Adjustable CC Dim Driver

The SE-12 and SE-15 mains dimmable drivers can be controlled via most leading edge/trailing edge triac dimmer modules. The driver features adjustable constant current output settings from 100mA to 700mA.

Mains input triac dimmable 220~240vac
Output voltage 9 ~ 42VDC
Constant current output adjustable from 100 ~ 700mA
Dimming range 0~100%

SE-12_SE15-100-400-G1T TD-25-200-900-E1P1

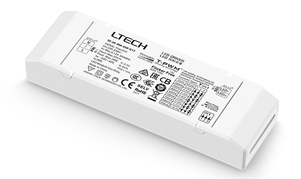

SE-20W to SE-40W Intelligent CC Dim Driver

The SE-20 to SE-40 series mains dimmable drivers can be controlled via most leading edge/trailing edge triac dimmer modules. The driver features adjustable constant current output settings from 300mA to 650mA.

Class 2 Mains triac dimmable 220~240VAC
99% compatibility with dimmer module brands
High stability at low currents preventing flicker
No LED colour shift
Improved LED lifetimes
Improved efficiency

SE-20-300-650-G1T SE-30_SE40-150-900-G1T
