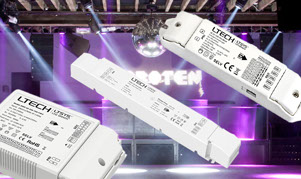

DMX-PWM CC LED Drivers

We offer an extensive range of mains input DMX-PWM constant current LED drivers designed for advanced control of LED lighting products.

The range features:

  • AC mains input
  • T-PWM digital dimming
  • DMX/RDM protocol
  • Push Dimming
  • Multi-current & wide voltage range
  • 0-100% flicker-free (IEEE 1789 standard)
  • Short circuit / Over-heat / Over load / Non-load protection, auto recovery

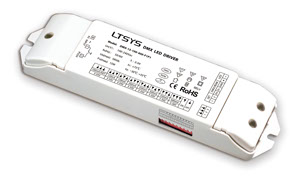

LT-DMX-PWM Mains Input 12W To 36W CC

The LT-DMX-PWM-CC series are AC mains input drivers designed to convert DMX512 digital signal to constant current PWM signal to drive LEDs. The range features adjustable output current set by DIP switch and flicker free dimming, drivers conform to International safety and EMC standards.

  • AC mains input 240VAC
  • Adjustable constant current output
  • Output voltage range 10v - 54VDC
  • Control by DMX/RDM and push
  • 0-100% flicker free dimming IEEE 1789
  • CC output set by DIP switch
  • Output power 10W to 36W

LT-DMX-PWM Mains Input 50W CC Dimming Drivers

The LT-DMX-PWM mains input drivers are designed to convert DMX512 digital signal to constant current PWM signal to drive LEDs.

  • Mains input 100~240VAC
  • Output power ratings from 10W to 60W
  • Constant current selectable output
  • Single and multichannel output
  • Mains "push" dimming
  • Dimming range 0-100%
  • International safety approvals
