0-10v, 1-10v Low Voltage Dimmable LED Drivers

0/1-10V Low Voltage Input CV Dimmable LED Drivers

Our range of 0-10v and 1-10v dimmable LED drivers encompasses a choice of low voltage DC input voltage. These drivers operate in constant current or constant voltage output mode. Features include short circuit, temperature & over current protection. Drivers conform to international safety standards.

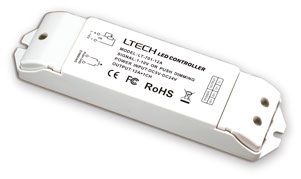

LT-701CV-12A Single Channel

The LT701-12A is a constant voltage 0-10V/1-10V PWM and push dimmable driver which adopts the latest IEC62386 standard.

LT-701CV-12A

LT-701CV-12A Single Channel

Features include:

DC input Constant voltage 12~24v
Single channel output 12A
Dimming range 0 ~ 100%
Operating Temp -30° ~ +55°C
Dimensions L175xW44xH30mm

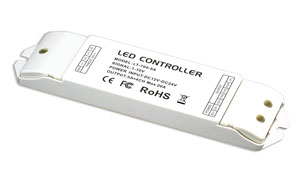

LT-704CV-5A 4-Channel

The LT704-5A is a constant voltage 0-10V/1-10V PWM and push dimmable driver which adopts the latest IEC62386 standard.

LT-704CV-5A

LT-704CV-5A 4-Channel

Features include:

DC input Constant voltage 12~24v
4-channel output 5A / channel
Dimming range 0 ~ 100%
Operating Temp -30° ~ +55°C
Dimensions L175xW44xH30mm
